Edge AI & Intelligent System

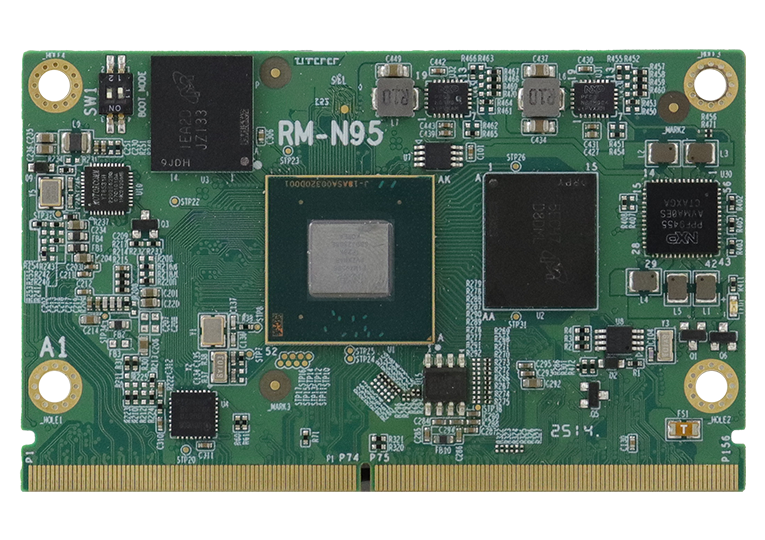

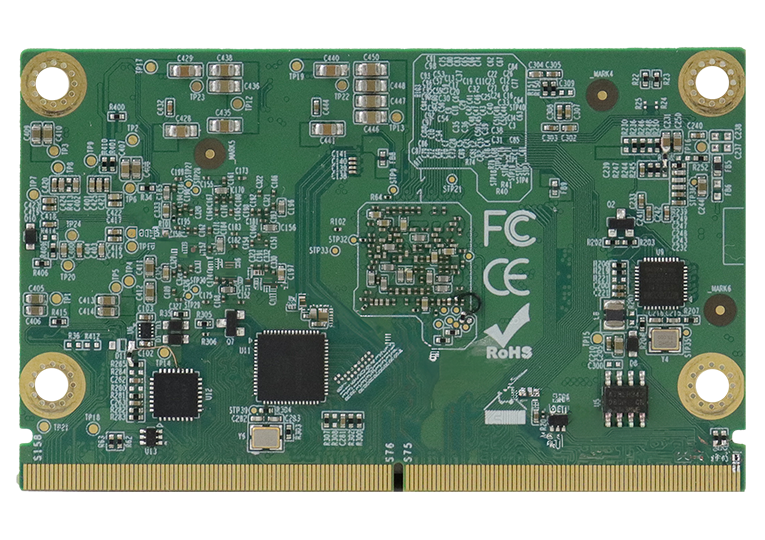

RM-N95
AI Edge Board with SMARC® 2.2 Module with NXP i.MX 95 with 6x Arm® Cortex®-A55 Cores and Neutron NPU
- NXP i.MX 95 with 6x Arm® Cortex®-A55 Cores (1.8GHz industrial grade)
- 1x Arm® Cortex®-M7 and 1x Arm® Cortex®-M33
- 8GB LPDDR5 6400 MT/s on board (option: 4GB or 16GB)
- 16GB eMMC on board (upgradeable to 256GB)
- eIQ Neutron NPU
- MIPI-DSI / LVDS / HDMI
- 10 GbE support
- Validated on Yocto 5.0
- Wide-range operating temperature (-40°C to +85°C)
| Form Factor | SMARC® 2.2 Module |
| CPU Type | NXP i.MX 95 with 6 Cortex-A55 cores (1.8GHz industrial grade) 1x Arm Cortex-M7 and 1x Arm Cortex-M33 |
| CPU Socket | N/A |
| PCH | N/A |
| Memory | System memory: 8GB LPDDR5 6400 MT/s on board (option: 4GB or 16GB) Data Memory: 16GB eMMC on board (up to 256GB) |
| BIOS | N/A |
| H/W Monitor | N/A |
| Graphics | Arm Mali-G310 V2 GPU 3D GPU Arm Mali-G310 V2 GPU 3D GPU OpenGL® ES 3.2 Vulkan® 1.3 OpenCL™ 3.0 |
| Display | 1x 4-lane MIPI-DSI (4Kp30 or 3840 x 1440p60, BOM optional) 1x 8-lane or 2x 4-lane LVDS (up to 1080p or 1920 x 1200 or dual 720P) 1x HDMI interface (up to 4Kp30) |
| Image Capture Interface | 1x MIPI CSI-2 2-lane (BOM Optional) 1x MIPI CSI-2 4-lane |
| Video Codec | Decoder: H.265, H.264, 4Kp30 Encoder: H.265, H.264, 4Kp30 |
| I/O Chipset | NXP Cortex A55 i.MX 95 Six Cores 1.8 GHz Industrial Grade Support of 64-bit Arm v8.2 architecture Cortex-M7 CPU operating up to 800 MHz Cortex-M33 CPU operating up to 333 MHz |
| Watchdog | 256 Levels, 0~128 Secs |
| External I/O | SMARC connector to carrier board |
| Internal I/O | 1x 10 GbE Ethernet 2x 10/100/1000 Mbps Ethernet 1x USB 3.0 Type-C with PHY 1x USB 2.0 with PHY 1x 4-bit high-speed SDIO 2x 4-wire UART and 2x 2-wire UART 14x GPIO 2x I²S 3x I²C 1x SPI interface 1x XSPI interface 2x PCIe 3.0 x1 lanes 2x CAN FD |
| Expansion IO | N/A |
| TPM | Yes (TPM 2.0) |
| Storage | uSDHC (eMMC/SD) |
| Dimensions | 82mm x 50mm (3.23” x 1.97”) |
| Others | RTC: Yes 1x Green LED for system status (I/O control) Security: EdgeLock Secure Element/Discrete Hardware Root of Trust eIQ Neutron NPU |
| Power Consumption | 9.60 W |
| Operating Temperature | -40°C to +85°C (-40°F~+185°F) Industrial grade, with heat-sink |
| Storage Temperature | -40°C to +85°C (-40°F~+185°F) |
| Relative Humidity | 0%~90% (non-condensing@60°C) |
| Certification | CE/ FCC Class-B |
| Operating System | Yocto 5.0 (other OS by request) |
| RM-N95 | NXP i.MX 95 with 6 Cortex-A55 cores (1.8GHz industrial grade), 8GB LPDDR5, 16GB eMMC, -40°C to +85°C operating temperature |
| DATASHEETS | RM-N95 |
| CATALOGS | Edge AI Products (Vol.25.12) |
| USER'S MANUALS | RM-N95 V1.0A (IBASE Server) RM-N95 V1.0A (Google Drive) |
