Digital Signage Player

SE-102-N

Intel® Atom® x7/x5 / Pentium® / Celeron® Processor Outdoor Fanless Signage Player with Dual HDMI

  • iSMART intelligent energy-saving & Observer remote monitoring technologies
  • Intel® Atom™ x7/x5 / Pentium® / Celeron® Processors
  • Intel® HD Graphics 505
  • 2x 2GB DDR3L-L1866, Dual channel, Max. 8GB (Non-ECC, Unbuffered) DDR3L-1600 for N3350 only
  • 2x HDMI 1.4b, 1x Mini PCI-E (full-size) for Wi-Fi, Bluetooth or 4G LTE options
  • Fanless, super slim and compact design
  • Wide-range operating temperature from -40°C to 70°C
  • iSMART
  • Observer
  • Fanless

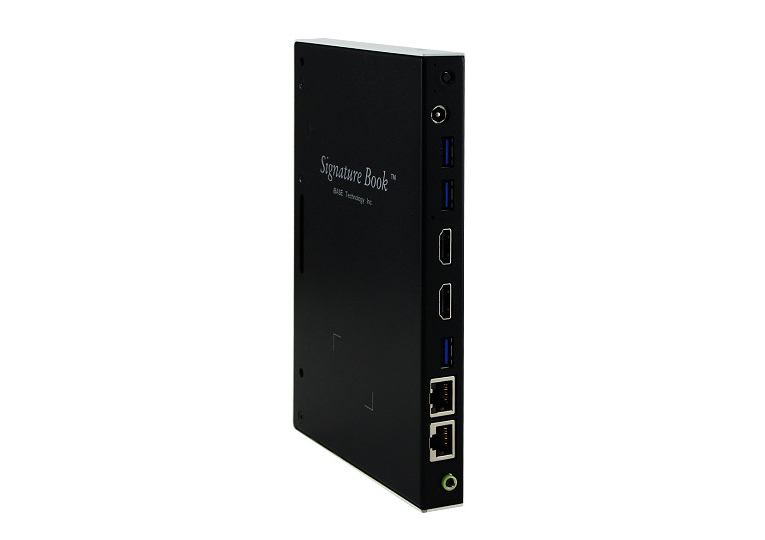

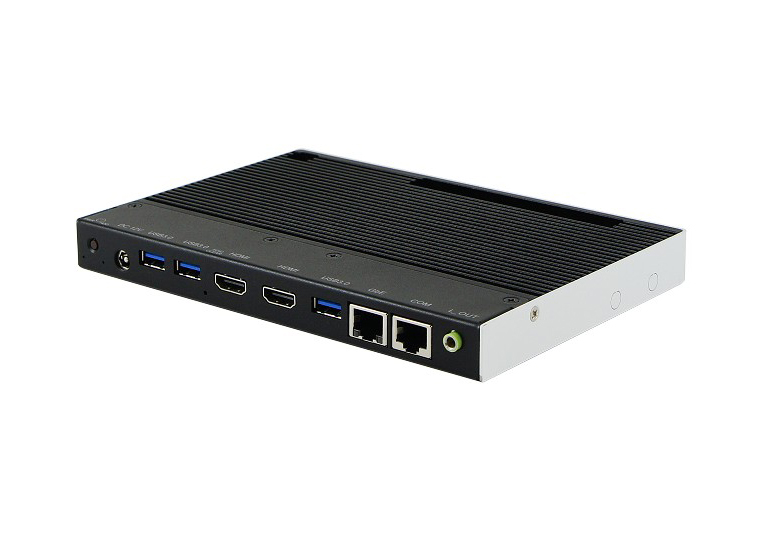

The SE-102-N is an ultra slim, fanless digital signage player that measures only 19.5mm thick. The media player enables the retail, food and hospitality segments to deliver compelling and valuable content in dual high-definition HDMI displays to targeted audiences in outdoor environments. It has been tested to pass extended operating temperatures (-40°C to +70°C) and meet extreme system reliability requirements that allow its deployment in a wide range of harsh indoor and outdoor environments. The fanless and noiseless system comes on board with a lower-power Intel® Atom® x7-E3950 @ 2.0GHz quad-core processor with an Intel® HD Graphics, which combines efficiency and excellent performance, ensuring industrial-grade reliability for stable operation. It has two dual-channel DDR3L-1866 sockets to provide up to 8GB memory and 64GB mSATA SSD for faster system boot and low heat emission.


The SE-102-N's super-slim chassis can fit into the tightest spaces behind displays and offers an array of connectivity options including a Gigabit Ethernet, audio, USB 3.0 ports, and two HDMI interface supporting 4K UHD resolution. Powered by a 60W adaptor, the SE-102-N also has a Mini PCI-E slot for optional WiFi, Bluetooth, 4G and video capture functions. The player has two HDMI outputs together supporting independent audio outputs, as well as built-in hardware EDID (extended display identification data) simulation to prevent screen convergence problems and issues due to cable disconnection or failure to identify EDID. It also comes with IBASE's unique iSMART intelligent energy-saving and Observer monitoring technologies that feature automatic power on/off scheduling, automatic power recovery, low temperature boot protection and hardware monitoring.

System Mainboard MBD102
CPU Intel® Atom® x7/x5, Pentium® & Celeron® Processors
CPU Socket FCBGA1296
Chipset SoC Integrated
Memory 2x 2GB DDR3L-L1866, Dual channel, Max. 8GB (Non-ECC, Unbuffered)
DDR3L-1600 for N3350 only
Graphics Intel® HD Graphics 505
LAN 1x Intel® I210IT Gigabit LAN controller for EXXXX series
1x Intel® I210AT Gigabit LAN controller for NXXXX series
Expansion Slots 1x Mini PCI-E (full-size) for Wi-Fi, Bluetooth or 4G options
1x SIM card slot

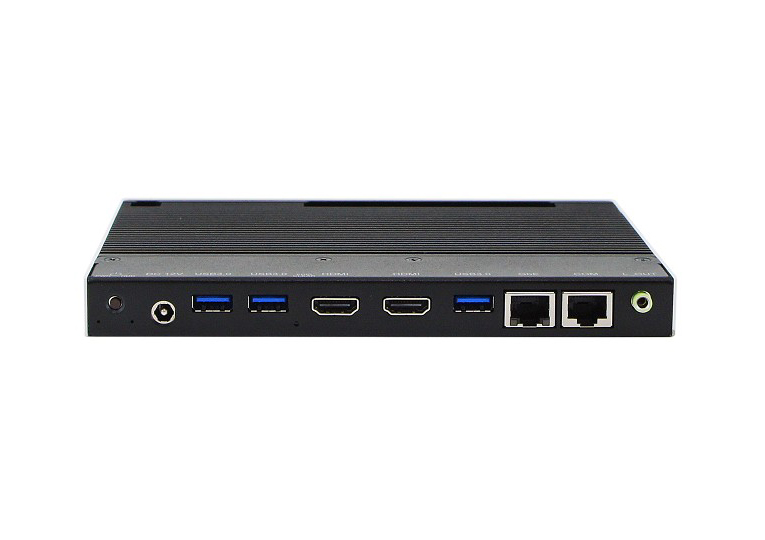

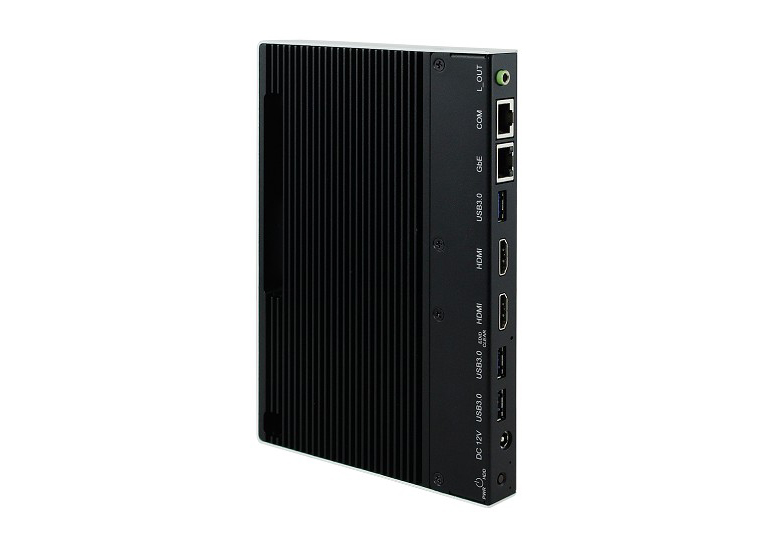

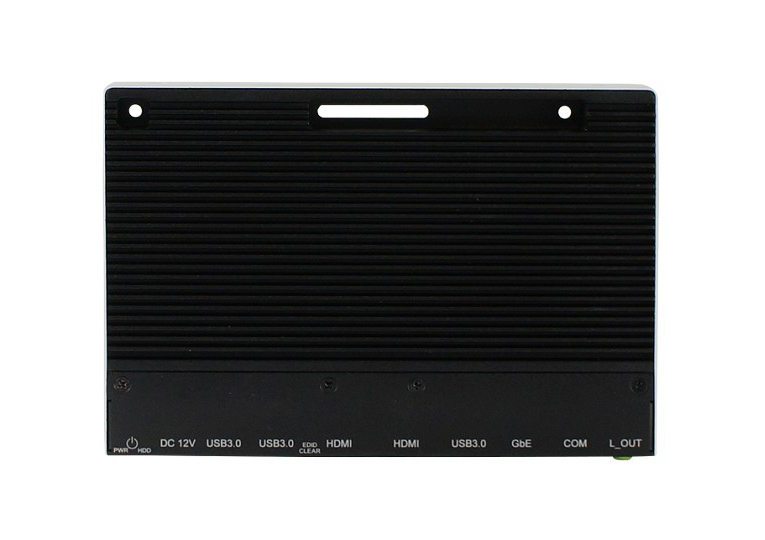

I/O Interface 2x HDMI 1.4b with hardware EDID emulation
3x USB 3.0 port
1x RJ45 for Gigabit LAN
1x RJ45 for RS232 serial port
1x Audio connectors for / Line-out
1x Power / HDD LED
1x power on / off button
1x DC jack
Auto Control and Monitoring Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min)
Power Requirement +12V DC
Construction Aluminum + SGCC
Weight 0.9 kgs (1.98 Ibs)
Chassis Color Black and white
Storage 1x mSATA
Power Supply 60W power adaptor
Mounting Standard system bracket
Dimensions 190mm(W) x 130mm(D) x 19.5mm(H)
7.48" (W) x 5.12" (D) x 0.77" (H)
Operating Temperature -40°C~70°C (-40°F~158°F) for Exxxx CPU
0°C~ 45°C (32°F~113°F) for Nxxxx CPU
Storage Temperature -40°C ~ 110°C (-40°F~230°F)
Relative Humidity 5%~90% @45oC (non-condensing)
Vibration SSD: 5 grms / 5~500Hz / random operation
Certification CE, FCC class-B, cULus, LVD
Operating System Windows10 / Linux
SE-102-N Signage Player with Intel® Atom® x7 / E3950 (1.6~2.0GHz); 2x 2GB DDR3 SO-DIMM RAM, 64GB mSATA, and 60W power adaptor. (Operating temperature: -40°C~70°C is not supported by the adaptor)
SE-102-N420 Signage Player with Intel® Pentium® N4200 (1.1~2.5GHz); 2x 2GB DDR3 SO-DIMM RAM, 64GB mSATA, and 60W power adaptor. (Operating temperature: 0°C~45°C)
SI-MK1 Mounting bracket

Drivers

Model Chipset Video Audio Network Others
SE-102-N

Intel(R) Chipset Software Installation Utility

Windows 10

Intel(R) HD Graphics Driver

Windows 10 (64bit)

Realtek High Definition Audio

Windows 10

Intel(R) I21X Gigabit LAN

Windows 10 (64bit)

Intel(R) TXE Drivers

Windows 10

Intel(R) Serial IO Drviers

Windows 10
