Digital Signage Player

IOPS-602

7th/6th Gen Intel® Core™ U-Series Processor OPS Signage Player

  • Supports 7th/6th Gen Intel® Core™ U-Series QC/DC Processors
  • Intel® HD Graphics engine
  • Remote management with iAMT Technology
  • 2x DDR4-2133, SO-DIMM, Dual channel, Max. 32 GB
  • 1x HDMI 1.4b
  • 1x Line-out / 1x Mic-in
  • 1x RJ45 for Gigabit LAN, 1x RJ45 for RS232 serial port
  • 4x USB 3.0 ports
  • 1x M.2 E-Key (2230) for Wi-Fi or Bluetooth options

IOPS-602 is a slot-in digital signage player built on the benefits and functionality of Intel’s Open Pluggable Specification (OPS). The OPS standard provides cableless and cost-effective deployment for more effective management and maintenance of media players.


The IOPS-602 OPS signage player is powered by 7th Gen Intel® Core™ QC/DC processors and runs both Window 10 and Linux Ubuntu operating systems. It uses the processor-integrated, high-definition graphics for crisp content playback with up to 4K resolution. In addition, advanced features to meet customer requirements include up to 32GB of DDR4 SO-DIMM support, four USB 3.0, one Gigabit LAN, an M.2 (KEY E) for optional WiFi/Bluetooth expansion cards, and Intel® AMT for remote system control, monitoring and troubleshooting.

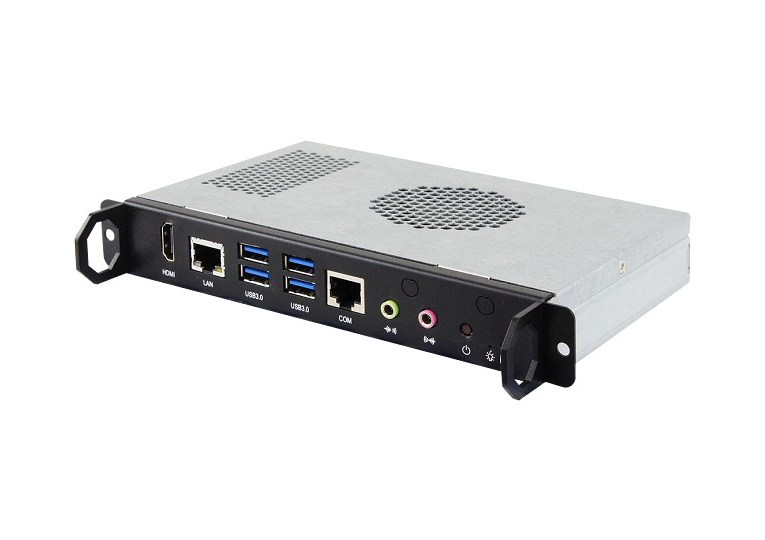

IOPS-602 OPS Signage Player

IBASE offers a comprehensive line of digital signage players with solutions from entry-level, low power systems for one or dual FHD displays, to high-end systems that feature advanced configurations for 4K/8K/12K multi-screen video walls, hardware/software EDID emulation and wireless communications expansion options.

System Mainboard OPS602
CPU 7th Generation Intel® Core™ U-Series Processor
CPU Socket BGA1356
Chipset SoC Integrated
Memory 2x DDR4-2133, SO-DIMM, Dual channel, Max. 32 GB.
Graphics 7th Gen Intel® Core™ U-Series processor Intel® HD Graphics
LAN 1x Intel® I219LM LAN PHY for I5/I7
1x Intel® I219V LAN PHY for I3
Expansion Slots 1x M.2 E-Key (2230)

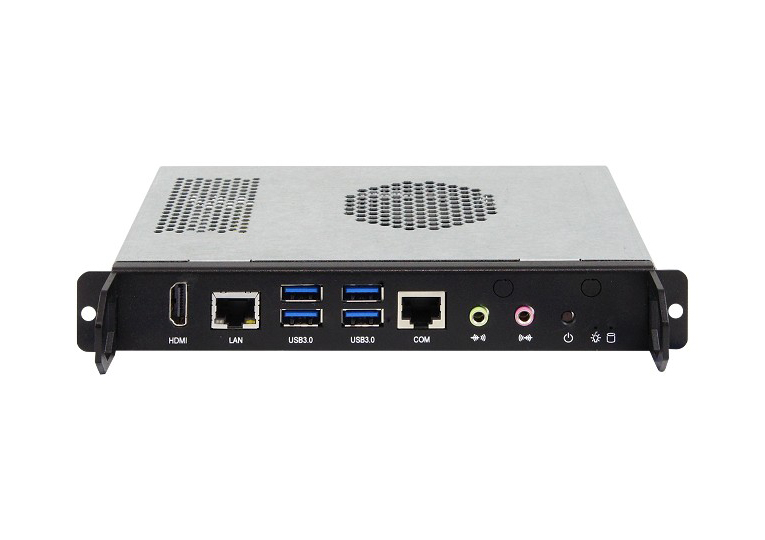

I/O Interface 1x HDMI 1.4b
4x USB 3.0 ports
1x RJ45 for Gigabit LAN
1x RJ45 for RS232 serial port
2x Audio connectors for Line-out/Mic-in
1x Power / HDD LED
1x power on/off button
Auto Control and Monitoring Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min)
Power Requirement +12~19V DC
Construction SGCC
Weight 0.9 kgs (1.98 lbs)
Chassis Color Black and gray
Storage 1x M.2 M-Key (2280)
Power Supply Power Requirement: DC-in +12V~+19V (Intel® OPS standard)
Mounting OPS standard bracket
Dimensions 200mm(W) x 119mm(D) x 30mm(H)
7.87" (W) x 4.69" (D) x 1.18" (H)
Operating Temperature 0°C~45°C (32°F~113°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 5%~90% @45oC (non-condensing)
Vibration SSD: 5 grms / 5~500Hz / random operation
Certification CE, FCC Class-B
Operating System Win10 IoT Enterprise (64-bit)
Linux Ubuntu
iOPS-602 OPS System with Intel® Core™ i7-7600U (2.8GHz/3.9GHz) onboard, with 2x 4GB DDR4-2133 SO-DIMM, M.2 128GB storage
iOPS-602-i5 OPS System with Intel® Core™ i5-7300U (2.6GHz/3.5GHz) onboard, with 2x 4GB DDR4-2133 SO-DIMM, M.2 128GB storage
iOPS-DK1 iOPS-76/302/602 series Expansion Dock with 150W adaptor for use without OPS display

Drivers

Model Chipset Video Audio Network Others
IOPS-602

Intel(R) Chipset Software Installation Utility

Windows 10

Intel(R) HD Graphics

Windows 10

Realtek High Definition Audio

Windows 10

Intel(R) PRO LAN Network

Windows 10

Intel(R) ME 11.x

Windows 10

ASMedia USB 3.1

Windows 10
