Digital Signage Player

SI-654-N

11th Gen Intel® Core™ U-Series Processor Fanless Signage Player with Intel® SoC Integrated Graphics and 4x HDMI 2.0

  • iSMART intelligent energy-saving & Observer remote monitoring technologies
  • 11th Gen Intel® Core™ U-Series Processors
  • 4x HDMI 2.0 with independent audio output
  • Built-in CEC and hardware EDID emulation functions with the software setting mode
  • 2x DDR4-3200 SO-DIMM, Dual channel, Max. 64GB
  • 1x M.2 B-Key (3042) for 4G LTE options
  • 1x M.2 E-Key (2230) for Wi-Fi, Bluetooth or capture card options
  • 1x M.2 M-Key (2280) for storage
  • Supports Intel® iAMT(11.0), TPM 2.0 and watchdog timer
  • Industrial-grade robust fanless design
  • iSMART
  • Observer
  • Fanless

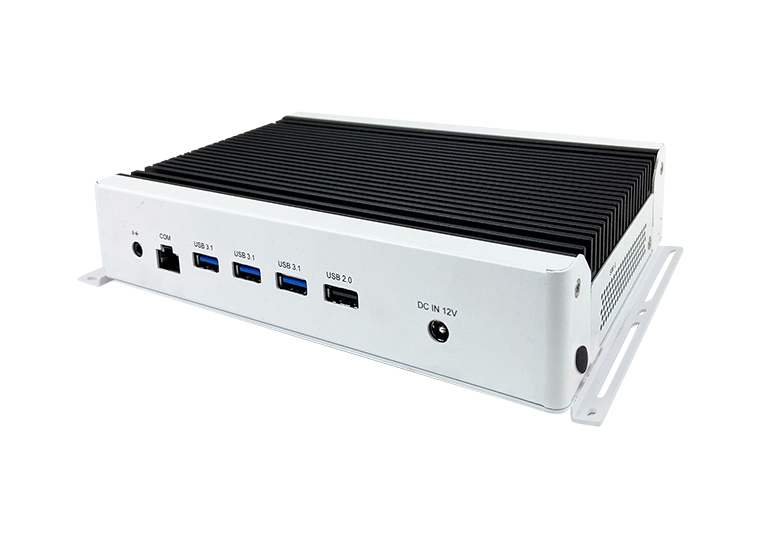

The SI-654-N is a fanless 8K digital signage player powered by Intel's latest 11th Gen Core™ U-Series processors (formerly Tiger Lake) manufactured with Intel's 10nm SuperFin transistor that achieves up to 17.5% performance uplift and significantly higher clock speeds at lower power compared to the original 10nm. It is currently offered with an Intel® Core™ i7-1185G7E processor (12M Cache, up to 4.40GHz) integrating the high-performance Iris Xe GPU, Intel's 12-Gen graphics with 96EUs. Measuring 200 x 139 x 41 mm, the compact SI-654-N can be easily installed in space-constraint environments. It houses four HDMI 2.0 connections to deliver up to 1x 8K display or 4x 4K displays, performing a vivid 8K resolution and ensuring a truly immersive audience's viewing experience.

Mainly designed for digital signage in busy places where there is a constant demand for practical information, the SI-654-N features HDMI-CEC control, display status monitoring, flexible video wall configurations and hardware EDID emulation that prevents distorted or black screen due to display and cable connection issues. The industrial-grade SI-654-N is perfectly suited for video wall solutions in airports, shopping malls and other commercial premises that require reliable 24/7 operation.

SI-654-N Mid-Range Signage Player

With IBASE advanced iSMART and Observer technologies, the player is equipped with low temperature boot protection, power resume control, power on/off scheduling, and hardware monitoring to enable continuous and stable operation of the system. For the deployment of high computing performance signage, the model SI-654 with a cooling fan is also available. Both players support TPM 2.0 for optimal cyber security and vPro for easy remote monitoring and management.

System Mainboard MBD654
CPU 11th Gen Intel® Core™ / Celeron® U-series (TGL-U Platform) processor TDP<=15W
CPU Socket BGA-1449
Chipset SoC Integrated
Memory 2x DDR4-3200 SO-DIMM, Dual channel, Max. 64GB
Graphics Gen12 integrated Graphics, Up to 96EU
LAN 1st: 1x Intel® I211AT/ I1210AT
2nd: 1x Intel® I219LM (I7/I5)
1x Intel® I219V (I3)
Expansion Slots 1x M.2 E-Key (2230)
1x M.2 B-Key (3042)
1x UIM/SIM card slot

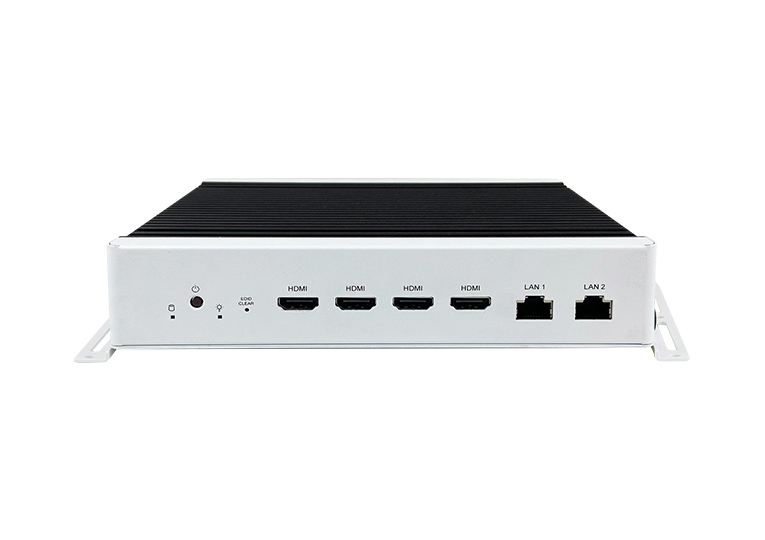

I/O Interface 4x HDMI 2.0
1x USB 2.0 (USB A-Type)
3x USB 3.1 @gen 2 (USB A-Type)
2x RJ45 for Gigabit LAN
1x RJ45 for RS232 serial port
1x Audio connector for Line-out
1x Power button
1x Power jack (+12V DC)
2x Power/HDD LED
Auto Control and Monitoring Watchdog Timer: 256 segments, 0, 1, 2…255 (sec/ min)
Power Requirement +12V DC
Construction Aluminum + SGCC
Weight 1.7 kg (3.7 lbs)
Chassis Color Black & White
Storage 1x M.2 2280 M-key supports NVMe (PCI-E x4 / SATA)
Power Supply 84W power adaptor
Mounting Standard system bracket
Dimensions 200.8mm(W) x 139.3mm(D) x 41.2mm(H)
7.90" (W) x 5.48" (D) x 1.62" (H)
Operating Temperature 0°C~45°C (32°F~113°F)
Storage Temperature -20°~80°C (-4°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Vibration M.2: 5 grms / 5~500Hz / random operation
Certification CE, FCC Class-B, UKCA, cULus, CCC, LVD
Operating System Windows 10 IoT Enterprise RS5(64-bit)
Linux Ubuntu(64-bit)
SI-654-N7 Intel® Core™ I7-1185G7E Processor (12M Cache, up to 4.40 GHz), 2x 4GB DDR4 3200 SO DIMM, M.2 128GB and 84W power adaptor, TDP<=15W
SI-654-N5 Intel® Core™ I5-1145G7E Processor (8M Cache, up to 4.1 GHz), 2x 4GB DDR4 3200 SO-DIMM, M.2 128GB and 84W power adaptor, TDP<=15W
SI-654-N3 Intel® Core™ I3-1115G4E Processor (6M Cache, up to 3.9 GHz), 2x 4GB DDR4 3200 SO-DIMM, M.2 128GB and 84W power adaptor, TDP<=15W
SI-MK3B TV Mount

Drivers

Model Chipset Video Audio Network Others
SI-654-N

Intel(R) Chipset Software Installation Utility

Windows10

Intel(R) HD Graphics

Windows10

Realtek High Definition Audio

Windows10

Intel(R) Network

Windows10

Intel(R) ME 15.X

Windows10

Intel(R) Thunderbolt

Windows10
