Digital Signage Player

SI-613

7th/6th Gen Intel® Core™ Desktop Processor Signage Player with Intel® HD Graphics 530 and 3x HDMI

  • iSMART intelligent energy-saving & Observer remote monitoring technologies
  • iAMT (11.0), TPM 1.2, vPro and watchdog timer
  • 7th/6th Gen Intel® Core™ Desktop Processors
  • Integrated Intel® HD Graphics 530
  • 3x HDMI 2.0 with independent audio output
  • Built-in hardware EDID emulation function
  • 2x DDR4-2133 SO-DIMM, Dual channel, Max. 32GB
  • 1x M.2 B-Key (3042) for storage or 4G LTE option
  • 1x Mini PCI-E (full-size) for Wi-Fi, Bluetooth or 4G LTE
  • iSMART
  • Observer

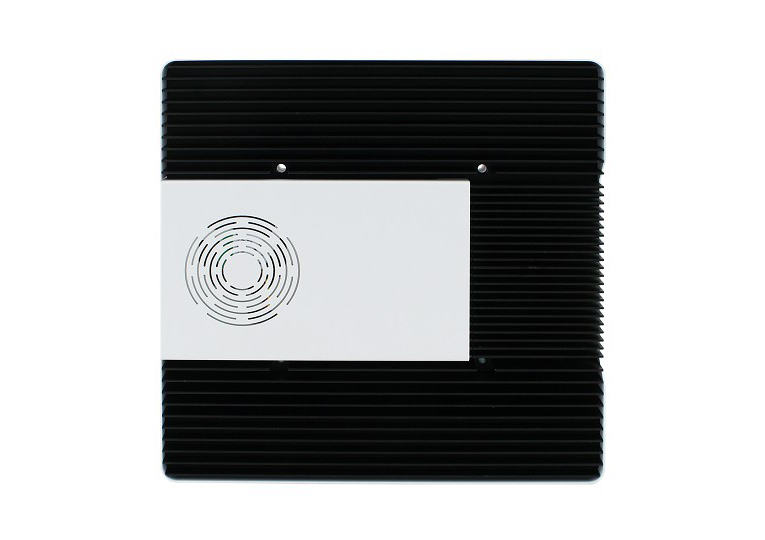

  • Segregated Airflow Design

2016 COMPUTEX d&i awards winner, the SI-613 is a 3x4K UHD digital signage system designed for digital menu boards and multi-screen video wall applications. Aside from featuring three independent ultra high-definition 3x 4K-resolution, the product is built with segregated flow ventilation and supports the latest 7th/6th Generation Intel core processors. SI-613 comes with hardware EDID (extended display identification data) simulation to prevent screen convergence problems and issues due to cable disconnection or failure to identify EDID, erroneous settings in hardware or digital playback software settings. The use of segregated ventilation ensures that the circuit board is free from dust and contaminants. The system is also integrated with IBASE's unique iSMART intelligent energy-saving technology which users can run directly from a web-based interface for energy saving, automatic power on/off scheduling, power automatic recovery, and low temperature boot protection. Its slim chassis allows it to perfectly hide behind small spaces of the screen to save space.


SI-613 Mid-Range Signage Player

System Mainboard MBD613
CPU 7th/6th Gen Intel® processors (14nm monolithic) TDP <=65W
CPU Socket LGA1151(Socket H4)
Chipset H170/Q170 PCH
Memory 2x DDR4-2133 SO-DIMM, Dual channel, Max. 32GB
Graphics Integrated Intel® HD Graphics 530
LAN 1x Intel® I219LM Gigabit LAN controller for Q170
1x Intel® I219V Gigabit LAN controller for H170
Expansion Slots 1x M.2 B-Key (3042)
1x Mini PCI-E (full-size)
1x SIM card slot

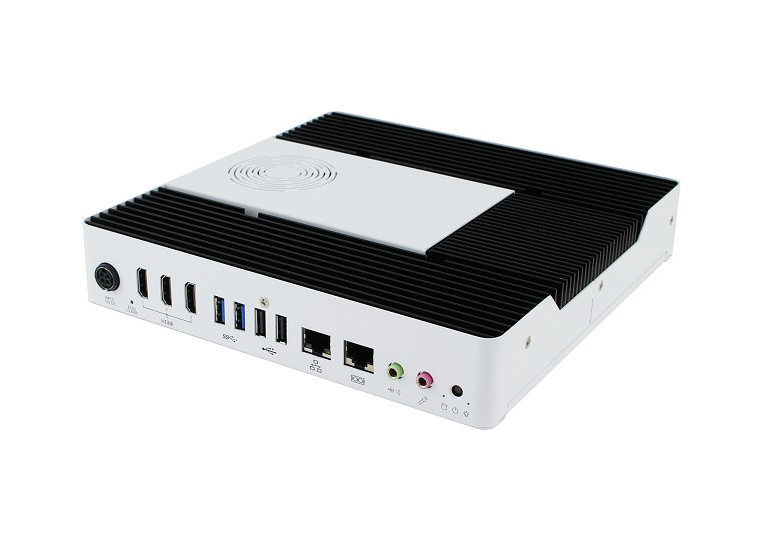

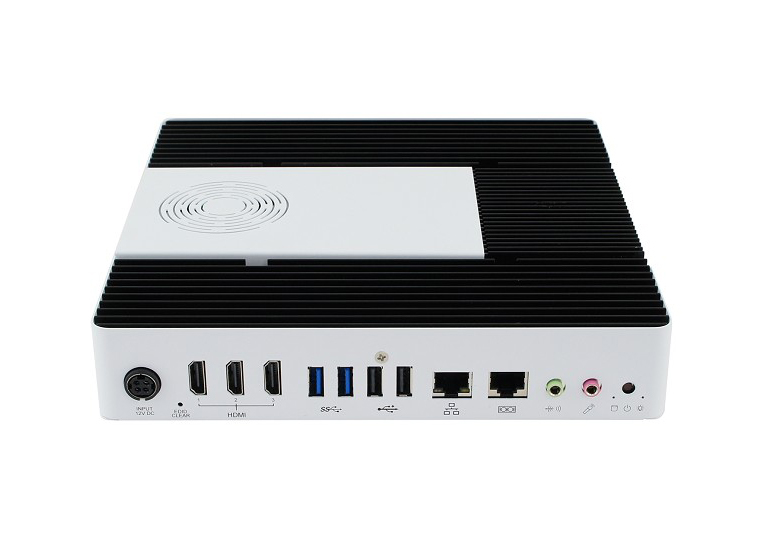

I/O Interface 3x HDMI 2.0 with hardware EDID emulation
2x USB 3.0
2x USB 2.0
1x RJ45 for Gigabit LAN
1x RJ45 for RS-232 serial port
2x Audio connectors for Line-out/Mic-in
1x Power / HDD LED
1x Power button
1x Power jack connector
Auto Control and Monitoring Watchdog Timer: 256 segments, 0,1,2…255 (sec/min)
Power Requirement +12V DC
Construction Aluminum + SGCC
Weight 2.2 kg (4.85 lbs)
Chassis Color Black & white
Storage 1x M.2 M-Key (2280)
Power Supply 150W power adaptor
Mounting Slim design with wall mounting holes
Dimensions 215.6mm(W) x 215.6mm(D) x 40mm(H)
8.49" (W) x 8.49" (D) x 1.57" (H)
Operating Temperature 0°C~45 °C (32°F~113 °F) (CPU TDP <=45W)
0°C~40°C (32°F~104°F) (CPU TDP=65W)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 5~90% @ 45°C, (non-condensing)
Vibration M.2: 5 grms / 5~500Hz / random operation
Certification CE, FCC Class-B, cULus, BSMI, LVD
Operating System Win7 32/64-bit, Win8.1(64-bit), Win10(64-bit) Enterprise
SI-613-QT Book-Size Signage Player with MBD613-QT (Q170) with Intel® Core™ i7-6700 processor (8M Cache, up to 4.00 GHz), 2x 4GB DDR4-2133 SO-DIMM, M.2 64GB & 150W power adaptor
SI-MK3A Mounting bracket
