Digital Signage Player

SI-62S

9th/8th Gen Intel® Core™ Desktop Processor Video Wall Signage Player with 1x PCI-E (x16) or 2x PCI-E (x8) Slots

  • 9th/8th Gen Intel® Core™ / Pentium® / Celeron® Desktop Processors
  • 2x DDR4 SO-DIMM, Max. 32GB (supports ECC by CPU SKU)
  • Intel® Processor integrated Graphics, supports DVI-D, HDMI, DisplayPort
  • Dual Intel® Gigabit LAN
  • 6x USB3.0, 2x USB2.0, 4x COM, 4x SATA III
  • 1x M.2 E-Key (2230) for Wi-Fi, Bluetooth or capture card options
  • 1x M.2 M-Key (2280) for Storage or other options
  • Watchdog timer, Digital I/O, iAMT (11.6), TPM (2.0)
  • 1x PCI-E(x16) or 2x PCI-E(x8) based on PCI-E x16 Connectors for Matrox / AMD / Nvidia GPU card options
  • Observer
  • Segregated Airflow Design
System Mainboard MI998AF
CPU 9th/8th Gen Intel® Core™ Desktop Processors TDP<=65W
CPU Socket LGA1151
Chipset Q370 PCH
Memory 2x DDR4 SO-DIMM, Max. 32GB (supports ECC by CPU SKU)
Graphics Integrated Intel® HD graphics P630
LAN 1x Intel® I219LM Gigabit LAN controller
1x Intel® I211AT/ I210AT PCI-E Gigabit LAN (as 2nd LAN)
Expansion Slots 1x M.2 E-Key (2230)
1x M.2 M-Key (2280)
1x PCI-E (x16) or 2x PCI-E (x8) based on PCI-E x16
connectors for Matrox / AMD / NVIDIA Graphics card

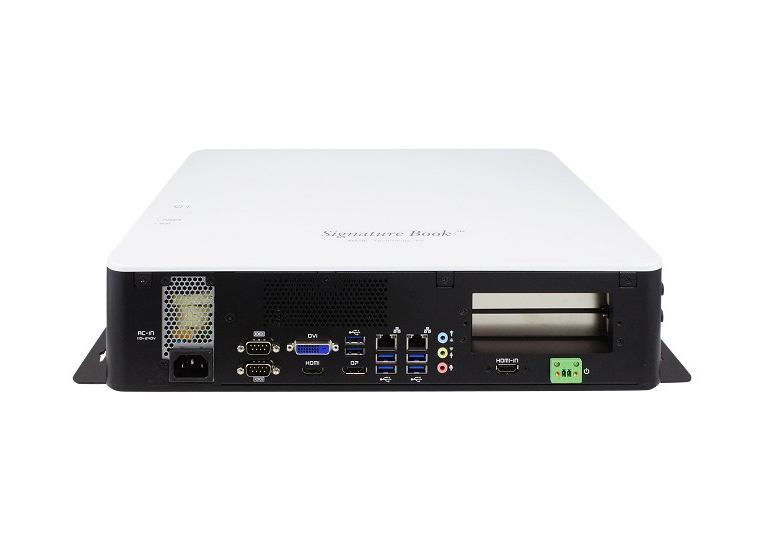

I/O Interface Supports DVI-D, HDMI(1.4), DisplayPort(1.2)
6x USB 3.0, 2x USB 2.0
1x GPIO port
2x RJ45 for Gigabit LAN COM1 & COM2 for RS232/422/485
3x Microjack audio connectors for Mic, Line-in and Line-out
1x HDMI in for the capture card option
1x Power/ HDD LED, 1x power button
1x Terminal block for external power button
1x Reset button, 1x DC 12V output
Auto Control and Monitoring Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min)
Power Requirement AC 110V~240V
Construction Aluminum + SGCC
Weight 8kgs (17.64Ibs)
Chassis Color Black & white
Storage 2x 2.5" SATA SSD slots with RAID 1
Power Supply Internal 500W PSU
Mounting Standard system bracket
Dimensions 406mm(W) x 345mm(D) x 93mm(H)
17.16" (W) x 15.9" (D) x 3.66" (H)
Operating Temperature 0°C~45°C (32°F~113°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Vibration mSATA: 5 grms / 5~500Hz / random operation
Certification CE, FCC class-B
Operating System Windows® 10(64-bit)
Ubuntu (64-bit)
SI-62S Signage Player with MI998AF with Intel® Core™ i7-8700 processor, 1x IP119 PCI-E(x16) riser card, 2x 8GB DDR4 memory, 1x 2.5" SSD 128GB & 500W PSU
SI-62S-2P Signage Player with MI998AF with Intel® Core™ i7-8700 processor, 1x IP421 with 2x PCI-E x8 (PCI-E x16 connectors) riser card, 2x 8GB DDR4 memory, 1x 2.5" SSD 128GB & 500W PSU
DATASHEETS SI-62S
CATALOGS Digital Signage Players (Vol.23.12)
MANUALS SI-62S

Drivers

Model Chipset Video Audio Network Others
SI-62S

Intel Coffeelake chipset

Windows 10

Intel HD Graphics Driver

Windows 10

Realtek High Definition Audio

Windows 10

Intel i21X LAN

Windows 10

Intel iAMT Driver

Windows 10
