Digital Signage Player

SI-626

7th/6th Gen Intel® Core™ Mobile Processor Video Wall Signage Player with AMD Radeon E8860 Graphics and 6x HDMI

  • iSMART intelligent energy-saving & Observer remote monitoring technologies
  • 6x HDMI1.4b with independent Audio output
  • Built-in hardware EDID emulation function with software setting mode
  • 7th/6th Gen Intel® Core™ Mobile Processors
  • 2x DDR4-2133 SO-DIMM, Dual channel, Max. 32GB
  • Flexible VW display configuration setting
  • 1x Mini PCI-E (full-size) for Wi-Fi, Bluetooth, 4G LTE or capture card options
  • 1x M.2 E-Key (2230) for Wi-Fi, Bluetooth
  • 1x M.2 M-Key (2280) for storage
  • 2x RS232 serial ports
  • Slim and segregated ventilation design
  • iSMART
  • Observer
  • Segregated Airflow Design

The SI-626 is a digital signage system based on 7th/6th Gen Intel® Core™ mobile processors and powered by the AMD Radeon™ E8860 graphics GPU that leverages the advanced Graphics Core Next (GCN) architecture to provide outstanding ultra-high resolution multimedia playback across six HDMI display.


To produce an extreme-performance digital signage player, the SI-626 combines the processing power of the Intel® Core™ i7-7820EQ with the supreme graphics capabilities of the AMD Radeon™ E8860. The SI-626 is very slim, less than 30mm in thickness, yet it provides stable performance because of the segregated ventilation that IBASE puts into the design to protect components from dust and built-in IBASE H/W EDID emulation with remote control functionality using an IBASE utility to prevent display issues due to cable disconnection or display identification failures.

SI-626 Extreme Performance Video Wall Player

The IBASE iCONTROL intelligent energy-saving green technology and the Observer remote monitoring technology in the SI-626 enable power efficiency through automatic power scheduling, power failure detection to reduce downtime, restoration to default state in the event of a system crash, as well as system boot up even under low ambient conditions so that users can depend on the SI-626 to deliver reliable performance even in rugged environments.


The SI-626 is ideal for video walls or multi-displays with ultra-high resolution multimedia playback across multiple displays to capture and hold viewers’ attention like never before, in public places such as large retail stores, shopping malls, airports and train stations. The standard SI-626 comes with 8GB of DDR4 system memory, two Gigabit Ethernet and a 128GB SSD storage. Weighing 2.2kgs and measuring 290mm by 222mm by 29.9mm, it can be mounted directly without the need for additional mounting brackets.

System Mainboard MBD626
CPU 7th/6th Generation Intel® Core™ mobile processor TDP <=35W
CPU Socket FCBGA1440
Chipset HM170/ QM170 PCH
Memory 2x DDR4-2133 SO-DIMM, Dual channel, Max. 32GB
Graphics AMD Radeon™ E8860 GPU
LAN 2x Realtek RTL8111H-CG Gigabit LAN controller
Expansion Slots 1x Mini PCI-E (full-size)
1x M.2 E-Key (2230)
1x M.2 M-Key (2280)
1x SIM card slot

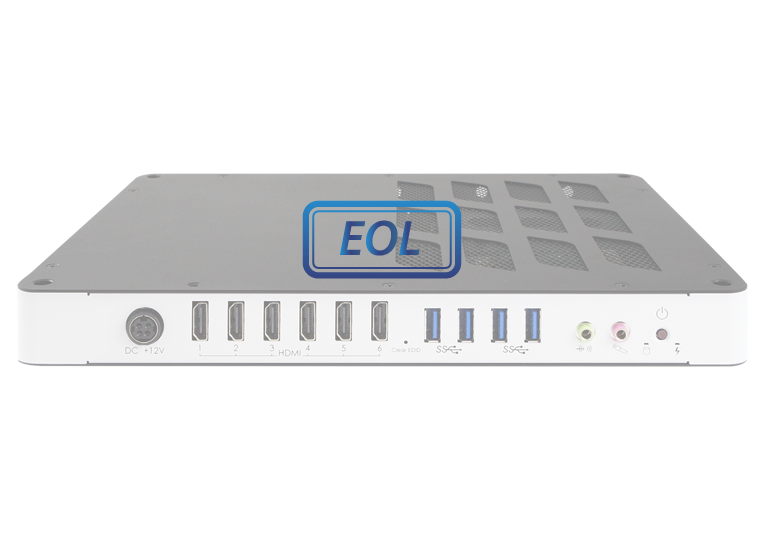

I/O Interface 6x HDMI 1.4 with hardware EDID emulation
4x USB 3.0
2x RJ45 for Gigabit LAN
2x RJ45 for RS-232 serial port
1x Audio connector for Line-out/Mic-in
1x Power / HDD LED
1x Power button
1x Power jack connector
Auto Control and Monitoring Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min)
Power Requirement +12V DC
Construction Aluminum + SGCC
Weight 2.2 kg (4.85 Ibs)
Chassis Color Black and white
Storage 1x 2.5" SSD/HDD
Power Supply 150W power adaptor
Mounting Standard system bracket
Dimensions 290mm(W) x 222mm(D) x 29.9mm(H)
11.41" (W) x 8.74" (D) x 1.17" (H)
Operating Temperature 0°C~45°C (32°F~113°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 5%~90% @45oC (non-condensing)
Vibration SSD: 5 grms / 5~500Hz / random operation
Certification CE, FCC Class-B, cULus
Operating System Win7(64-bit), Win10(64-bit) Enterprise, Linux Ubuntu 64-bit
SI-626 Signage Player with MBD626 (w/ AMD E8860 GPU for 6x HDMI), with 6th Gen Intel® Core™ (Mobile) i7-7820EQ processor, 2x 4GB DDR4 SO-DIMM, 128GB SSD and 150W power adaptor
DATASHEETS SI-626
CATALOGS Digital Signage Players (Vol.23.12)
MANUALS SI-626

Drivers

Model Chipset Video Audio Network Others
SI-626

Intel(R) Chipset Software Installation Utility

Windows 7 & 8 & 10

AMD Graphics

Windows 7 & 8 & 10

Realtek High Definition Audio

Windows 7 & 10

Realtek Network

Windows 7

Note: In Windows 7 OS, a patch kmdf-1.11-win7(KB2685811) should be installed before install ME. Intel(R) ME 11.x

Windows 7 & 8
