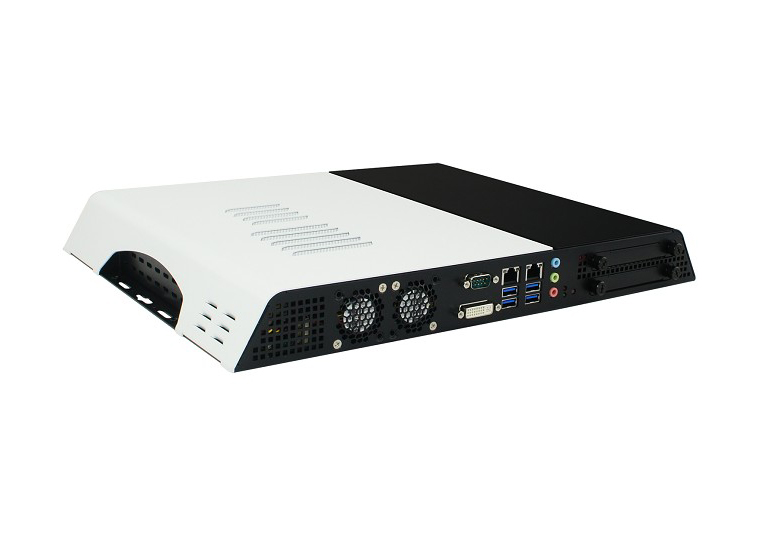

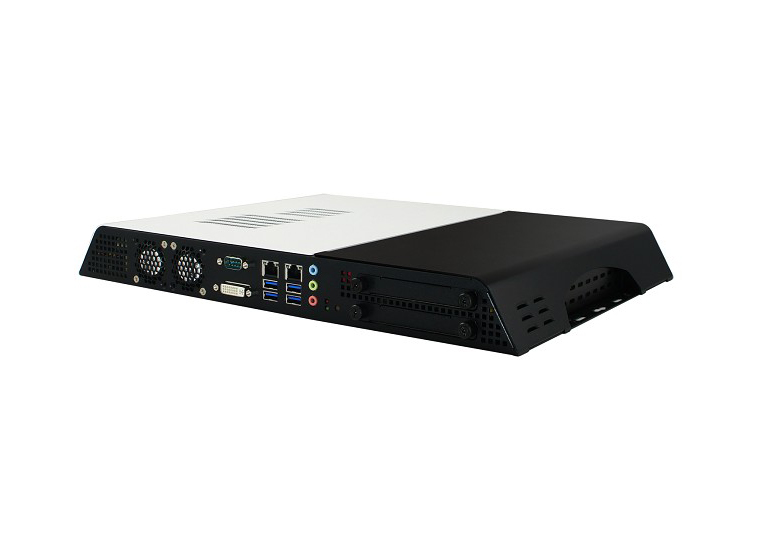

Digital Signage Player

SI-60E-6H

4th Gen Intel® Core™ Desktop Processor-based Video Wall Signage Player with Six HDMI

  • iCONTROL intelligent energy-saving & Observer remote monitoring technologies
  • 6x HDMI 1.4 with independent audio output support
  • built-in hardware EDID emulation function
  • 4th Gen Intel® Core™ desktop processor
  • 4x DDR3-1600 DIMM, dual channel, Max. 32GB
  • Flexible VW display configuration setting
  • 2x RS232 serial ports
  • 1x Mini PCI-E (full-size) for mSATA, Wi-Fi, Bluetooth or 4G LTE options
  • 1x Mini PCI-E (full-size) for Wi-Fi, Bluetooth or 4G LTE
  • 2x SATA III 2.5" HDD with RAID 1 support
  • Compact and rugged design
  • iSMART
  • Observer

The 4th Generation Intel® Core™ processor-based SI-60E-6H is a super-high 8K video wall player built specifically for multi-screen video wall display applications. It supports up to 6 displays (HDMI 1.4) with independent audio output and features IBASE's Multiple-Display Matrix Technology for flexible VW configuration and resolution setting, hardware EDID emulation and bezel adjustment. This aesthetically designed player offers awesome 3D graphics performance with resolutions up to 5760 x 2160. SI-60E-6H also integrates IBASE's iSMART technology featuring power on/off scheduling, power resume function, low-temperature guardian and intelligent OS recovery that reduces maintenance cost, enhances system stability and ensures long-term reliability.

System Mainboard MBD60E
CPU 4th Generation Intel® Core™ i7/i5/i3 and Pentium® QC/DC processors
CPU Socket LGA1150
Chipset Intel® Q87 PCH
Memory 4x DDR3-1600 DIMM, Max. 32GB
Graphics AMD E8860 GPU with 128-bit wide, 2GB GDDR5, 72Gbps 640 Shader processors
• AMD APP technology, OpenCL™ 1.24, DirectCompute 11.1
• 768 / 48 GFLOPS single- / double-precision peak (600e/4.5Gbps)
• Supports AMD Eyefinity technology
LAN 1x Intel® Clarkville I218LM Gigabit LAN controller
1x Realtek RTL8111G-CG Gigabit LAN controller
Expansion Slots 1x Mini PCI-E (full-size) for mSATA, Wi-Fi, Bluetooth or 4G LTE options
1x Mini PCI-E (full-size) for Wi-Fi, Bluetooth or 4G LTE

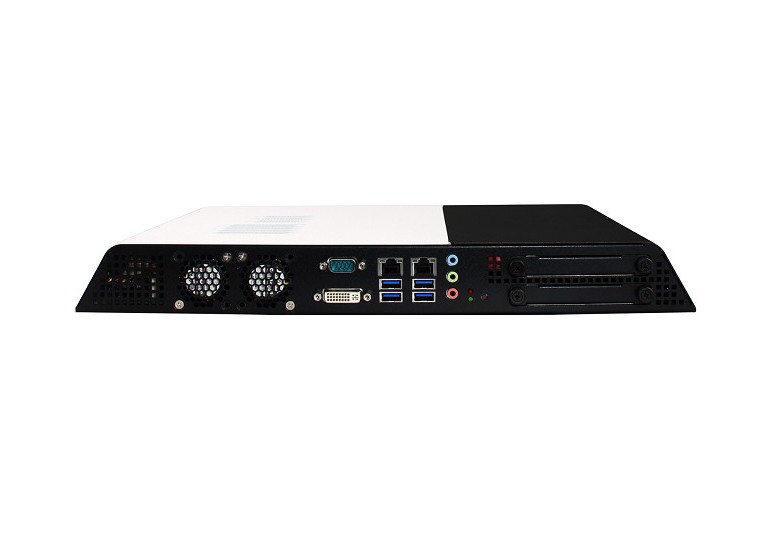

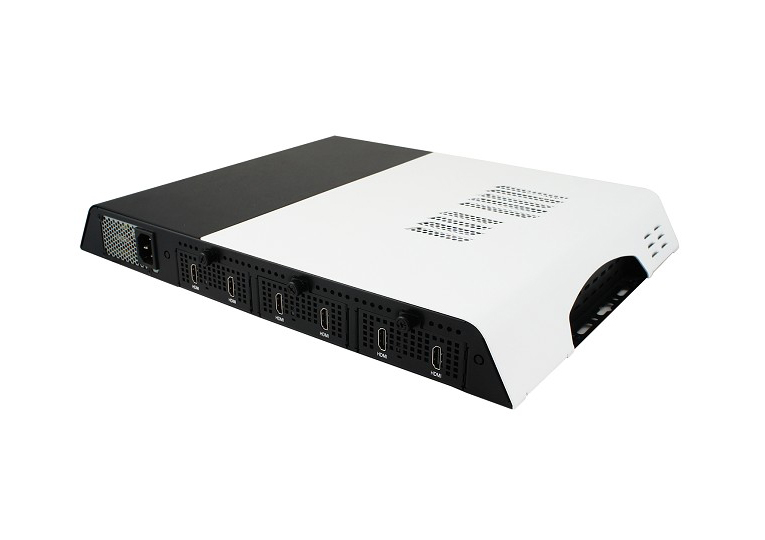

I/O Interface 6x HDMI 1.4 with hardware EDID emulation
1x DVI-I for console
4x USB 3.0 ports
2x RJ45 for Gigabit LAN
1x DSUB 9-pin for RS232
3x Microjack audio connectors for Line-in/Line-out/Mic Power LED for power on/off & HDD
1x Power button
1x AC power inlet
Auto Control and Monitoring Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min)
Power Requirement N/A
Construction SGCC
Weight 5.4 kgs (11.9 lbs)
Chassis Color Black and white
Storage 2x SATA III 2.5" HDD dock (supports RAID 1)
Power Supply N/A
Mounting Standard system bracket
Dimensions 412mm(W) x 310mm(D) x 47mm(H)
16.22" (W) x 12.2" (D) x 1.85" (H)
Operating Temperature 0°C~ 45°C (32°F~113°F)
Storage Temperature -20°C ~ 80°C (-4°F~176°F)
Relative Humidity 5~90% @ 45°C, (non-condensing)
Vibration mSATA: 5 grms / 5~500Hz / random operation
Certification CE, FCC Class B, cULus & CCC
Operating System Windows XP, Win7 32/64-bit, Win8 64-bit, Win8.1 64-bit
Win10 64-bit Enterprise, WEC 2013
SI-60E-6H Signage Player with MBD60E (w/ AMD E8860 for 6x HDMI), with 4th Gen Intel® Core™ (DT) i7-4770S processor, 4x 8GB DDR3 DIMM, 2.5" 128GB SSD and 250W PSU
SI-60X Rack mounting bracket
DATASHEETS SI-60E-6H
MANUALS SI-60E-6H

Drivers

Model Chipset Video Audio Network Others
SI-60E-6H

Intel Chipset Driver

Windows 7 & 8

AMD Graphics Driver

Windows 7 & 8

Realtek High Definition Audio Driver

Windows 7 & 8

Intel LAN Driver

Windows 7 & 8 (32bit)

Realtek LAN Driver

Windows 7&10 (64bit)

Intel iAMT Driver

Windows 7 & 8

Intel USB 3.0 Driver

Windows 7
