Digital Signage Player

SI-614

7th/6th Gen Intel® Core™ Desktop Processor Video Wall Signage Player with NVIDIA MXM Graphics and 4x DP

  • iSMART intelligent energy-saving & Observer remote monitoring technologies
  • 7th Gen Intel® Core™ i7/i5/i3/ Pentium® / Celeron® Desktop Processors
  • NVIDIA MXM Graphics card (Type-B, up to 150W)
  • 2x DDR4-2133 SO-DIMM, Dual channel, Max. 32GB
  • 1x HDMI 1.4 for console, 4x DisplayPort
  • 1x Mini PCI-E (full-size) for Wi-Fi, Bluetooth, 4G LTE or capture card options
  • 1x M.2 B-Key (3042) for 4G LTE options
  • 2x 2.5" SATA III SSD drive bay
  • Compact and rugged design
  • iSMART
  • Observer

The SI-614 digital signage player is based on 7th Gen Intel® Core™ desktop processors and supporting NVIDIA MXM GeForce GTX 10 Series graphics cards that feature amazing speed, power efficiency and with 3X the performance of previous-generation graphics cards.


The SI-614 digital signage player is designed for digital signage applications within hospitality, retail and education sectors to empower the establishments to connect and communicate with their guests, customers and audience, reliably delivering high-quality live video and digital signage content. The standard SI-614 signage player is powered by a 7th Gen Intel® Core™ i5-7500 processor with a NVIDIA MXM NV1050 graphics card integrated with 4GB GDDR5 128bit memory, 16GB DDR4 memory and a 128GB 2.5-inch SSD storage device.

SI-614 Extreme Performance Video Wall Player

With IBASE’s SI-614, users have the option to choose the type of NVIDIA GeForce GTX 10 Series graphics cards to enable flexible deployments based on their specific requirements, including the GTX 1080 8GD5x, GRX 1070 8GD5, GTX 1060 6GD5, GTX 1050TI-LN 4GD5, GTX 1050-LN 4GD5, and GT1030 2GD5. The SI-614 has four DisplayPort video output connectors to support four independent displays - four displays with each supporting 4K @60Hz, or just one display with 8K@60 resolution. Another display option is to have four displays with 2x2 VW setting or just one single display with 8K super-high-definition image/video (based on GTX 1080 8GD5x).

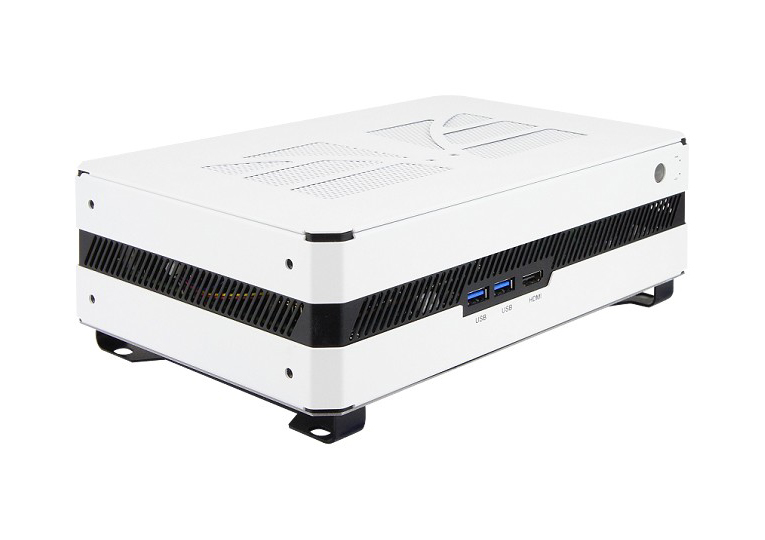

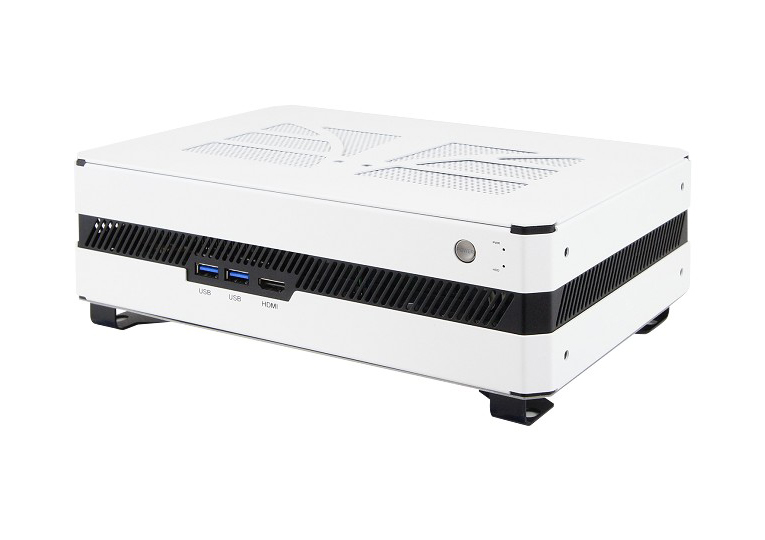

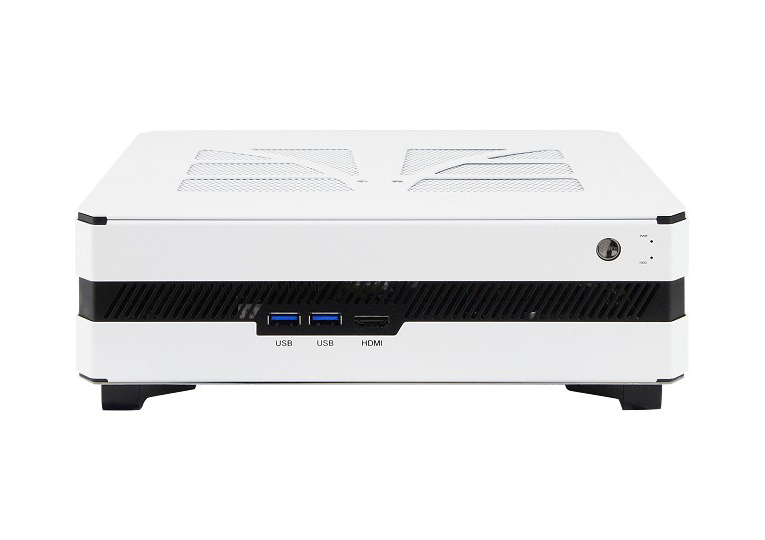

The SI-614 has dimensions of 256mm(W) x 160mm (D) x 69mm(H) and can be installed with the standard system bracket. The model SI-614M comes with a system motherboard and 270W power adaptor but without processor and graphics card.

System Mainboard MBD614
CPU 7th Gen Intel® Core™ Desktop Processors
CPU Socket LGA1151
Chipset H110 PCH
Memory 2x DDR4 2133 SO-DIMM, Dual channel, Max. 32GB
Graphics NVIDIA MXM Graphics
LAN 1x Intel® I219V Gigabit LAN controller
Expansion Slots 1x Mini PCI-E (full-size)
1x M.2 B-Key (3042)
2x 2.5" drive bay for SATA III SSD
1x SIM card slot

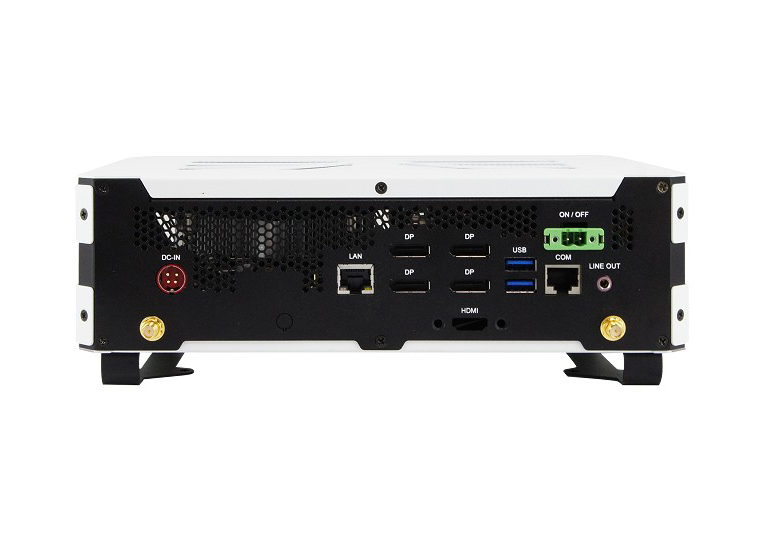

I/O Interface 1x HDMI 1.4 for console
4x DisplayPort
4x USB 3.0
1x RJ45 for Gigabit LAN
1x RJ45 for RS-232 serial port
1x Audio connector for Line-out
1x Power / HDD LED
1x Power button
1x Power jack connector
1x Terminal block for external power button
Auto Control and Monitoring Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min)
Power Requirement +19V DC
Construction SGCC
Weight 3kg (6.6lbs)
Chassis Color Black and white
Storage 1x M.2 M-Key (2280)
Power Supply 270W power adaptor
Mounting Standard system bracket
Dimensions 256.4mm(W) x 173mm(D) x 73mm(H)
10.09" (W) x 6.81" (D) x 2.87" (H)
Operating Temperature 0°C~45°C (32°F~113°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 5%~90% @45oC (non-condensing)
Vibration SSD: 5 grms / 5~500Hz / random operation
Certification CE, FCC Class-B, UL
Operating System Windows 10 / Linux
SI-614 Signage Player with MBD614 with Intel® Core™ i5-7500 processor (8M cache, up to 3.4 GHz), 1x MXM NV1050 4GB 128bit/GDDR5 GPU card, 2x 8GB DDR4, 128GB 2.5" SSD & 270W power adaptor.
SI-614-M Signage Player with MBD614, 270W PSU w/o CPU, MXM GPU card memory & storage.
