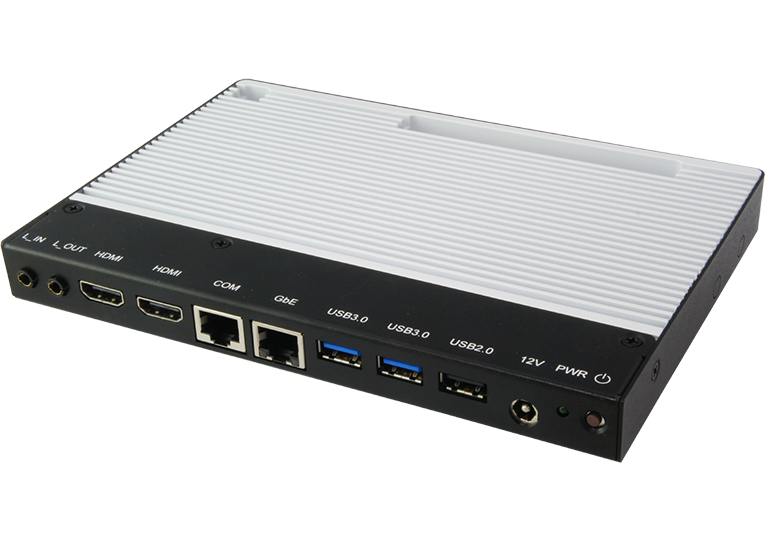

Digital Signage Player

SI-12/SI-12-J19

Intel® Atom® Processor E3845 or Celeron® Processor J1900 Fanless Signage Player with Intel® Gen7 Graphics and Dual HDMI

  • iSMART intelligent energy-saving & Observer remote monitoring technologies
  • Intel® Atom™ E3845 Quad-Core 1.9 GHz or Celeron® J1900 Quad-Core 2.0 GHz
  • Intel® HD Graphics (Gen 7-LP) 4EU
  • 2x DDR3L-1333 SO-DIMM, Dual channel, Max. 8GB
  • 2x HDMI 1.4a
  • 1x Mini PCI-E (full-size) for Wi-Fi, Bluetooth or 4G LTE options
  • Fanless, super slim and compact design
  • Wide-range operating temperature from -30°C to 60°C
  • iSMART
  • Observer
  • Fanless
  • Wide Temperature
  • Microsoft Azure Certified-IoT

The SI-12 is an ultra slim signage player and measures only 19.5mm thick. This media player enables the retail, food and hospitality segments to deliver compelling and valuable content in dual high-definition HDMI displays to targeted audiences.


The SI-12 digital signage player has been tested to pass extended operating temperatures (-30°C to +60°C) to meet extreme system reliability requirements that allow its deployment in a wide range of harsh indoor and outdoor environments. The unit offers a fanless design by using the lower-power, high-performance 1.91GHz Intel® Atom® E3845 quad-core processor that has a built-in Intel® HD Graphics. It has two dual channel DDR3L-1333 sockets to provide up to 8GB memory and an optional 64GB mSATA solid state drive for faster system boot and low heat emission.


The SI-12 has a super-slim chassis that can be fitted into the tightest spaces behind displays. An array of versatile connectivity options include a Gigabit Ethernet, audio, USB 3.0 and 2.0 ports, and two HDMI 1.4a interface to support high video resolutions beyond 1080p systems. Powered by a 60W adaptor, the SI-12 also has a Mini PCI-E slot to accommodate optional WiFi, Bluetooth, 4G and TV tuner func­tions.

System Mainboard IB812
CPU SI-12: Intel® Atom® E3845 Quad-Core 1.9 GHz
SI-12-J19: Intel® Celeron® J1900 Quad-Core 2.0 GHz
CPU Socket FCBGA 1170 BGA
Chipset SoC Integrated
Memory 2x DDR3L-1333 SO-DIMMs, Dual channel, Max. 8GB (Non-ECC)
Graphics Intel® HD Graphics (Gen 7-LP) 4EU
LAN 1x Realtek RTL8111H-CG Gigabit LAN controller
Expansion Slots 1x Mini PCI-E (full-size)
1x UIM/SIM card slot
I/O Interface 2x HDMI 1.4a
1x USB 3.0 port, 2x USB 2.0
1x RJ45 for Gigabit LAN
1x RJ45 for RS232 serial port
2x Audio connectors for Line-in / Line-out
1x Power / HDD LED
1x Power button
1x DC jack
Auto Control and Monitoring Watchdog Timer: 256 segments, 0, 1, 2…255 sec/min
Power Requirement +12V DC-in
Construction Aluminum + SGCC
Weight 0.8 kgs (1.76 lbs)
Chassis Color Black & white
Storage 1x mSATA
Power Supply 60W power adaptor
Mounting Standard system bracket
Dimensions 190mm(W) x 130mm(D) x 19.5mm(H)
7.48" (W) x 5.12" (D) x 0.77" (H)
Operating Temperature -30°C ~ 60°C (-22°F~140°F) for SI-12
0°C ~ 45°C (32°F~113°F) for SI-12-J19
Storage Temperature -40°C ~ 80°C (-40°F~176°F)
Relative Humidity 5~90% @ 45°C, (non-condensing)
Vibration mSATA: 5 grms / 5~500Hz / random operation
Certification CE, FCC class-B, VCCI class-B, cULus, LVD
Operating System Win7 32/64-bit, Win8, Win8.1. WEI8.1, WEC 2013, Win10 32/64-bit Enterprise
SI-12 Signage Player with Intel® Atom® E3845 SoC (22nm); Quad-Core 1.91GHz, 4GB SO-DIMM RAM, 64GB mSATA, and 60W power adaptor (Operating temperature -30°C~60°C)
SI-12-J19 Signage Player with Intel® Celeron® J1900 (22nm); Quad- Core 2GHz, 4GB SO-DIMM, 64GB mSATA, and 60W power adaptor (Operating temperature 0°C~45°C)
SI-MK1 Mounting bracket
SI-1U-AD 1U Rackmount kit
HDMI Cable Holder SI-12 HDMI bracket kit
Power Cable Holder Bracket w/o rubber for SI-12 power button

Drivers

Model Chipset Video Audio Network Others
SI-12

Intel INF

Windows 7 & 8

Intel HD Graphics

Windows 7

Realtek HD audio Realtek ALC269Q-VC2

Windows 7 & 8

Realtek RTL8111G LAN

Windows 7 & 8

Intel USB 3.0

Windows 7

Intel TXE Driver

Windows 7 & 8
