Digital Signage Player

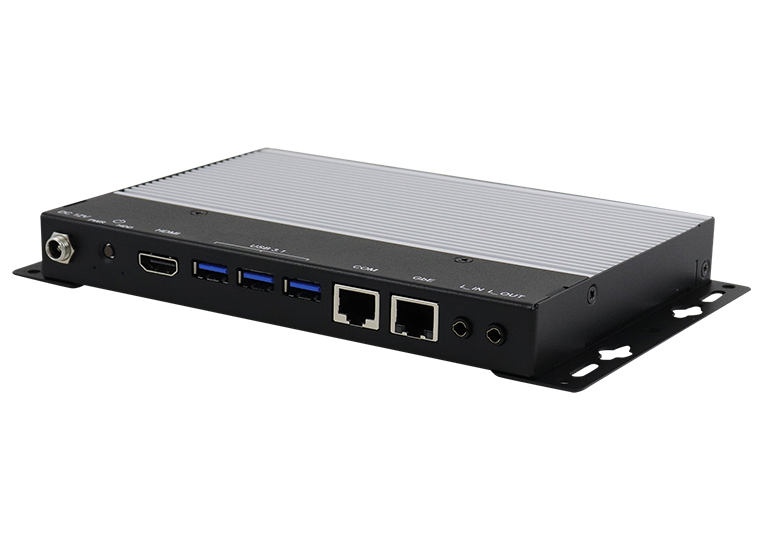

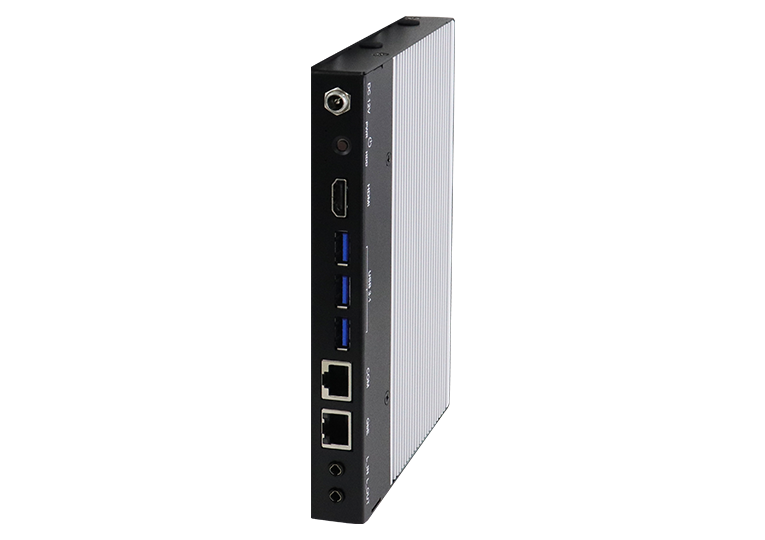

SI-111-N
Intel® Atom® x6000 / Pentium® / Celeron® Processor Fanless Signage Player with One HDMI
- Intel® Atom® X6000/ Pentium® / Celeron® Processors
- iSMART intelligent energy-saving & Observer remote monitoring technologies
- 2x DDR4-3200 SO-DIMM, Dual channel
- 1x HDMI 2.0b
- 3x USB 3.1
- 1x 2.5GbE LAN port
- 1x COM (RS-232)
- 1x M.2 M-Key (2280) for storage
- 1x M.2 E-Key (2230) for Wi-Fi, Bluetooth or capture card options
- TPM 2.0 and watchdog timer
- Industrial-grade robust, fanless and compact design
The SI-111-N is a palm-sized fanless 4K digital signage player system based on the Intel® Atom® x6211E and Celeron® N6210 processors. Equipped with an HDMI 2.0b port that supports 3840 x 2160 @60Hz resolution, the industrial-grade system enables businesses to easily connect to a 4K display and create immersive visual experiences that attract attention and effectively promote their products or services.
IBASE values sustainable development and ESG practices. The SI-111-N incorporates various energy-saving features, including IBASE's proprietary iSMART green technology that enables power on/off scheduling with power resume capabilities, and the Observer utility that remotely monitors system voltages and temperature to ensure the system is operating efficiently while minimizing energy consumption. The SI-111-N's extensive I/O connectivity offers a rich array of expansion options, reliable data handling, and wireless operation, which includes 1x 2.5GbE LAN, 1x COM (RS-232) port, 1x M.2 M-Key (2280) and 1x M.2 E-Key (2230) sockets.
The SI-111-N is an excellent solution for businesses that require a compact, energy-efficient, and powerful digital signage player that can operate seamlessly with 4K displays. It measures 181 x 123 x 21.5mm and is available in two models, the SI-111-N and SI-111-N11E. Both models come with 8GB of DDR4-3200 SO-DIMM memory, 128GB M.2 storage, and a 60W power adaptor. The SI-111-N operates from -10°C to 50°C, while the SI-111-N11E can withstand a wider temperature range of -20°C to 70°C for harsh environments. The systems are compatible with Win10 IoT Enterprise (64-bit) and Linux Ubuntu (64-bit) OS.
| System Mainboard | MBD111 |
| CPU | Intel® Atom® x6211E (1.3~3.0GHz) Intel® Celeron® N6210 (1.2~2.6GHz) |
| CPU Socket | FCBGA1493 |
| Chipset | SoC Integrated |
| Memory | 2x DDR4-3200 SO-DIMM, Max. 32GB (support IBECC) |
| Graphics | Intel® UHD Graphics for 10th Gen Intel® Processors |
| LAN | 1x Intel® I226IT 2.5GbE LAN for Atom® x6000 series 1x Intel® I226V 2.5GbE LAN for Celeron® |
| Expansion Slots | 1x M.2 M-Key (2280) for storage 1x M.2 E-Key (2230) for Wi-Fi, Bluetooth or capture card options |

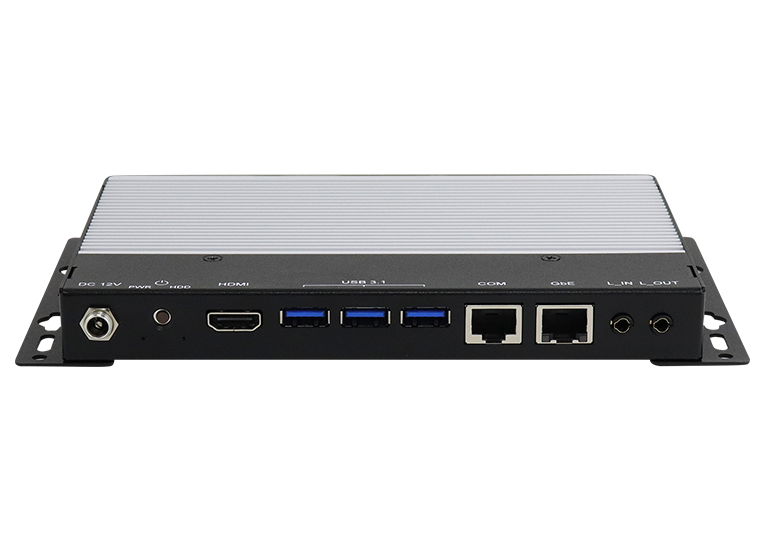

| I/O Interface | 1x HDMI 2.0b 3x USB 3.1 1x RJ45 for 2.5GbE LAN 1x RJ45 for RS232 serial port 2x Audio connectors for Line-in / Line-out 1x Power button 1x Lockable power connector 1x Power / HDD LED |
| Auto Control and Monitoring | Watchdog Timer: 256 segments, 0, 1, 2…255 (sec/min) |
| Power Requirement | +12V DC |
| Construction | Aluminum + SGCC |
| Weight | TBD |
| Chassis Color | Black & White |
| Storage | 1x M.2 M-Key (2280) |
| Power Supply | 60W power adaptor |
| Mounting | Standard system bracket |
| Dimensions | 181mm(W) x 123mm(D) x 21.5mm(H) |
| Operating Temperature | -10°C ~ 50°C (14°F~122°F) for SI-111-N -20°C ~ 70°C (-4°F~158°F) for SI-111-N11E |
| Storage Temperature | -40°C~80°C (-40°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
| Vibration | SSD: 5 grms / 5~500Hz / random operation |
| Certification | CE, FCC class-B, UKCA, cULus, LVD |
| Operating System | Win10 IoT Enterprise (64-bit) Linux Ubuntu (64-bit) |
| SI-111-N | Signage Player with Intel® Celeron® N6210 (1.2~2.6GHz); 2x 4GB DDR4-3200 SO-DIMM, M.2 128GB storage, 1x HDMI 2.0b, 3x USB 3.1, 1x LAN, 1x COM (RJ45) and 60W power adaptor (Operating temperature -10°C~50°C) |
| SI-111-N11E | Signage Player with Intel® Atom® x6211E (1.3~3.0GHz); 2x 4GB DDR4-3200 SO-DIMM, M.2 128GB storage, 1x HDMI 2.0b, 3x USB 3.1, 1x LAN, 1x COM (RJ45) and 60W power adaptor (Operating temperature -20°C~70°C) |
| DATASHEETS | SI-111-N |
| CATALOGS | 2023 Digital Signage Player Catalog |
| MANUALS | SI-111-N |
Drivers
| Model | Chipset | Video | Audio | Network | Others |
| SI-111-N |
Intel(R) Chipset Software Installation Utility Windows 10 |
Intel(R) Elkhartlake Graphics Driver Windows 10 |
Realtek High Definition Audio Driver Windows 10 |
Intel(R) I22X Gigabit Network Drivers Windows 10 |
Intel(R) ME Drivers Windows 10 |
