Digital Signage Player

ARD-048-N

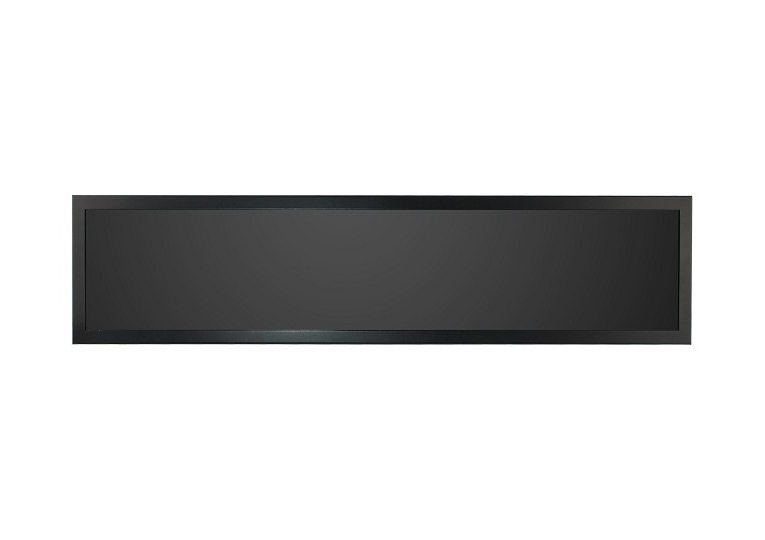

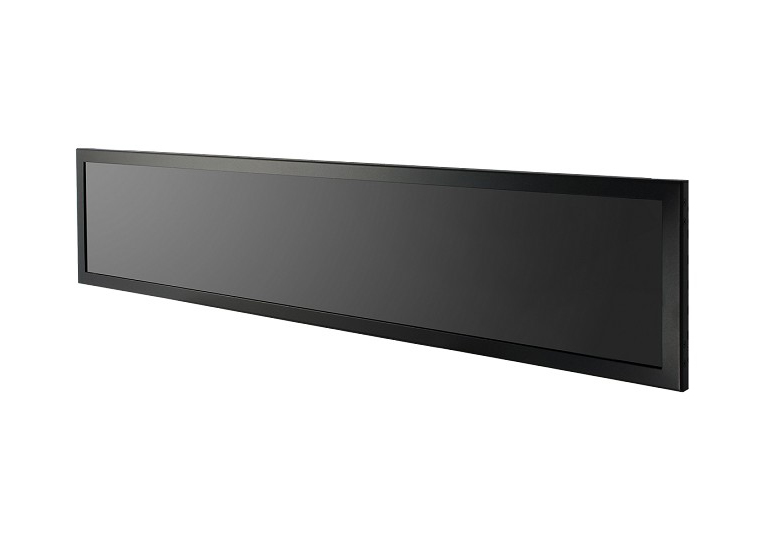

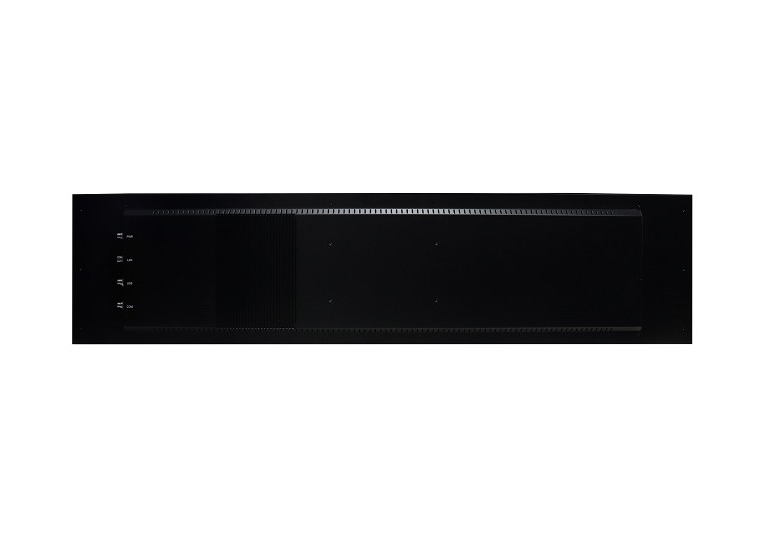

48” 8th Gen Intel® Core™ i5-8365UE Processor All-in-One Bar-Type Fanless Panel PC

  • 48" color TFT active matrix, wide LCD with optimum resolution 3840 x 720
  • 8th Gen Intel® Core™ i5-8365UE 1.6~4.1GHz with Intel® UHD Graphics 620
  • 2x DDR4-2400 SO-DIMM, Dual channel, Max. 32GB
  • 2x USB2.0
  • Ruggedized, fanless and compact design
  • Fanless
Panel Type 48" color TFT active matrix, wide LCD
Display Area 103.65(H) x 310.95(V)
Resolution 3840 x 720
Contrast Ratio 1000:1 (typ)
Viewing Angles 89°(H) / 89°(V)
Response Time 20ms (typ)
Backlight LED 50,000H
Brightness 1,000 nits (typ.)
Panel Surface Hard coating, Reduce scratching
System Mainboard IB919
CPU Type 8th Gen Intel® Core™ i5-8365UE (1.6GHz/4.1GHz)
CPU Socket FCBGA1528
Chipset SoC Integrated
Memory 2x DDR4-2400 SO-DIMM, dual channel, Max.32GB
Graphics Intel® UHD Graphics 620
LAN 1x Intel® I219LM GbE PHY
Expansion Slots N/A
I/O Interface 1x M12 connector Gigabit LAN
2x M12 connector USB 2.0
1x RS232/422/485 (jumperless selection) M12 connector
2x Speakers (reserved)
2x Antenna (reserved)
Auto Control and Monitoring Watchdog timer: 256 segments, 0, 1, 2…255 sec/min
Power Requirement +24V DC-in
Construction Aluminum + SGCC
Weight 17.58kg (38.76lbs)
Chassis Color Black
Storage 1x mSATA
Power Supply Optional
Mounting Side mounting
Dimensions 1250mm(W) x 280mm(D) x 49.7mm(H)
49.21" (W) x 11.02" (D) x 1.96" (H)
Operating Temperature -25°C~40°C (-13°F~104°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 5%~90% @45oC (non-condensing)
Vibration IEC61373
Certification CE, FCC Class B
Operating System Win10 32/64-bit Enterprise
ARD-048-N 48” All-in One Resizing Fanless 4K Panel PC with Intel® Core™ i5-8365UE (1.6GHz/4.1GHz), 2x 4GB DDR4-2400 SO-DIMM, 128GB mSATA, power adapter 180W 24V output
Speaker set 2x 4W speaker with the amplifier board
