Digital Signage Player

ARD-042-N

42” Intel® Pentium® N4200 Processor All-in-One Bar-Type Fanless Panel PC

  • 42" color TFT active matrix, wide LCD with optimum resolution 1920 x 480
  • Intel® Pentium® N4200 1.1Ghz~2.5GHz with Intel® SoC integrated Gen 9 18EUs Graphics
  • 2x DDR3L-1866 SO-DIMM, Dual channel, Max. 8GB
  • 1x M.2 B-Key (3042) for storage or 4G LTE options
  • 2x RJ45 for Gigabit LAN
  • 1x HDMI 1.4b
  • 1x DP 1.2
  • Ruggedized, fanless and compact design
  • Fanless

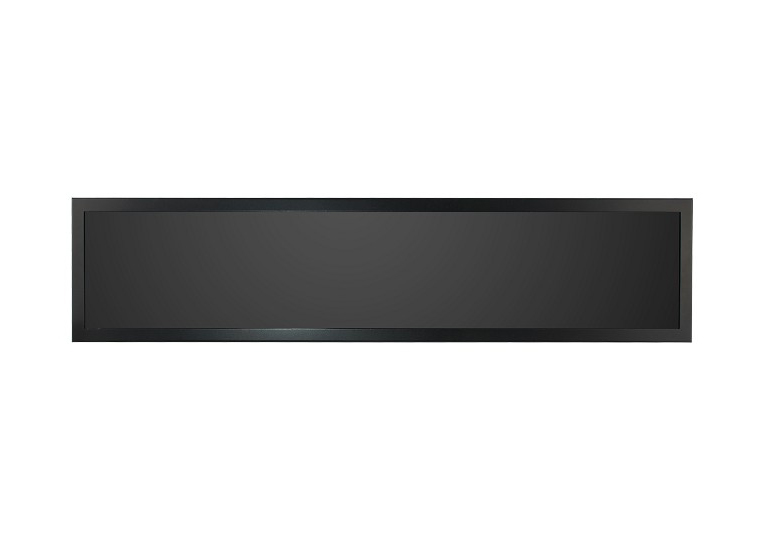

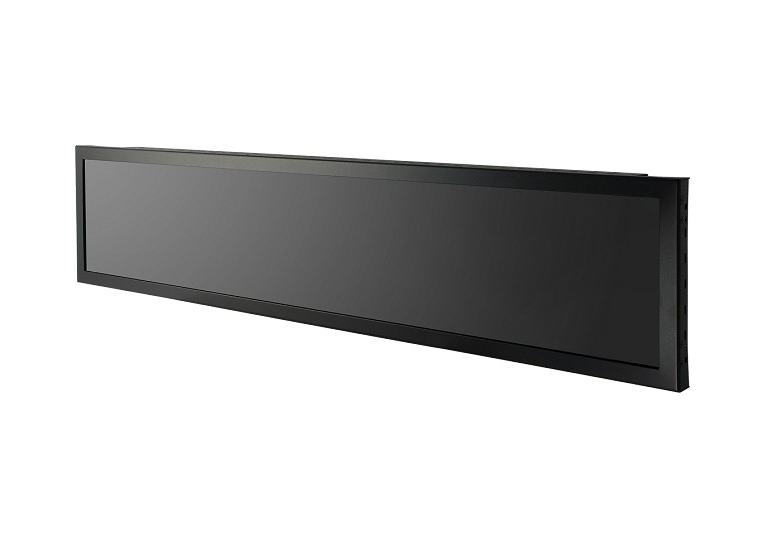

The ARD-042-N is a ruggedized all-in-one bar-type panel PC with a 42-inch wide LCD with optimum resolution of 1920 x 480.


This compact, fanless panel PC is powered by an Intel® Pentium® QC N4200 processor with a speed of up to 2.5GHz. As a digital signage display and media player, the ARD-042-N is designed for passenger information system (PIS) application in bus or train stations to provide advertising, travel schedules, weather forecasts, vehicle’s speed and arrival information, as well as other important announcements.


The standard ARD-042-N supports dual DDR3L-1866 memory, expandable to 8GB, a 64GB mSATA drive and Intel (Gen9) 18EUs SoC-integrated graphics to deliver a robust passenger information system with enhance performance and superb graphics (1920x480) that creates an immersive experience. The platform is based on the IBASE IB811F-420 motherboard featuring a rich combination of I/O and expansion interfaces, including an M.2 B key (3042) for storage or 4G LTE, two GbE RJ45 connectors, HDMI, DisplayPort, four USB 3.0 and an RS-232/422/485 serial port.


Measuring 928mm x 66mm x 281mm, the system comes with watchdog support, 180W 24V power adaptor and Windows 10 Enterprise operating system.

Panel Type 42" color TFT active matrix, wide LCD
Display Area 1039.68 (H) x 259.92(V)
Resolution 1920 x 480
Contrast Ratio 3500:1(typ.)
Viewing Angles 178°(H) / 178°(V)
Response Time 8ms (typ.)
Backlight LED
Brightness 550 nits
Panel Surface Anti-glare coating (Haze 44%)
System Mainboard IB811F-420
CPU Type Intel® Pentium® QC N4200 (1.1GHz~2.5GHz, 2MB cache)
CPU Socket FCBGA1296 (24mm x 31mm)
Chipset SoC Integrated
Memory 2x DDR3L-1866 SO-DIMM, Dual channel, Max. 8GB
Graphics Intel® SoC integrated Gen 9 18EUs graphics
LAN 2x Intel® I210IT or I210AT PCI-E Gigabit LAN
Expansion Slots 1x M.2 B-Key (3042)

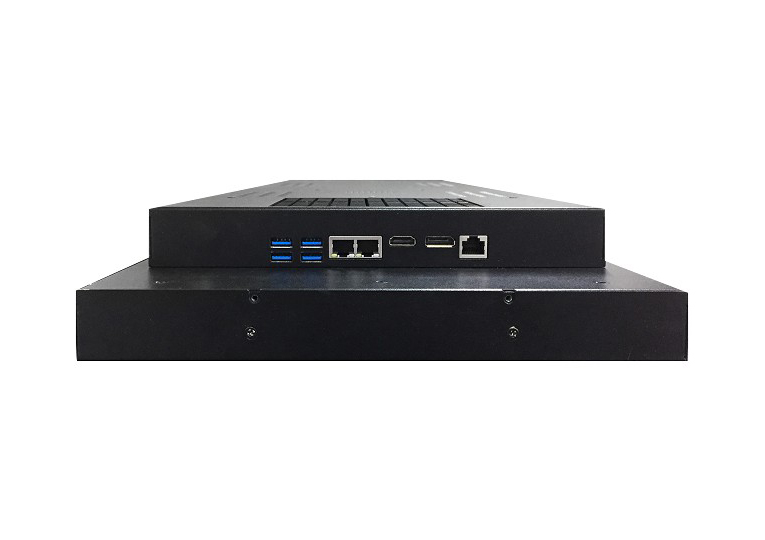

I/O Interface 1x HDMI 1.4b
1x DP 1.2
2x RJ45 for Gigabit LAN
4x USB 3.0
1x RS-232/422/485 (jumperless selection)
Auto Control and Monitoring Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min)

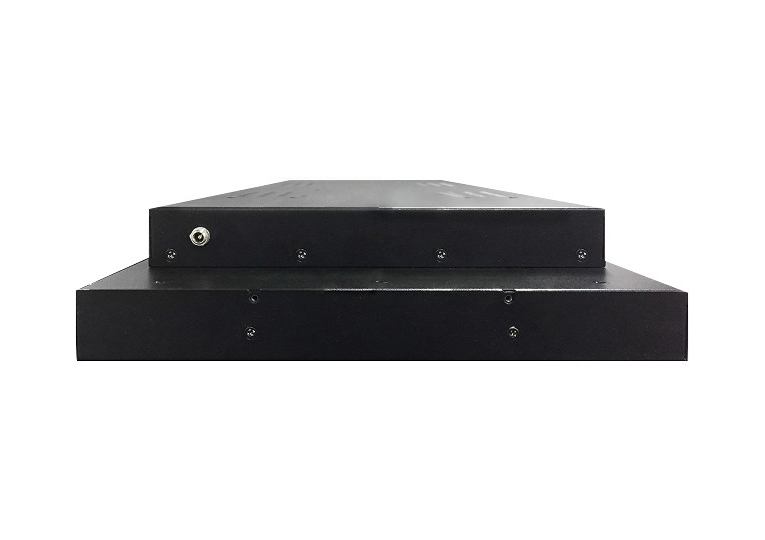

Power Requirement +12V DC-in
Construction Aluminum + SGCC
Weight 14.8 kg (32.63 Ibs)
Chassis Color Black
Storage 1x mSATA
Power Supply 180W power adaptor
Mounting Side mounting
Dimensions 1065.5mm(W) x 288.3mm(D) x 70mm(H)
41.94" (W) x 11.35" (D) x 2.75" (H)
Operating Temperature 0°C~40°C (32°F~104°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 5%~90% @45oC (non-condensing)
Vibration IEC61373 (Vibration Class B)
Certification CE, FCC Class-B
Operating System Win10 32/64-bit Enterprise
ARD-042-N 42” All-in-one Resizing Panel PC with Intel® Pentium® QC N4200 (1.1GHz~2.5GHz, 2MB cache), 2GB DDR3L-1866 SO-DIMM, 64GB mSATA w/ RJ45 LAN, AC/DC power adaptor 180W 24V output, DC Plug with screw lock
Speaker set 2x 4W speakers with the amplifier board

Drivers

Model Chipset Video Audio Network Others
ARD-042-N

Intel Chipset

Windows 10

Intel Apollolake Graphics

Windows 10

Realtek High Definition Audio

Windows 10

Intel I21x

Windows 10

Intel Serial IO

Windows 10 (64bit)

Intel TXE

Windows 10
