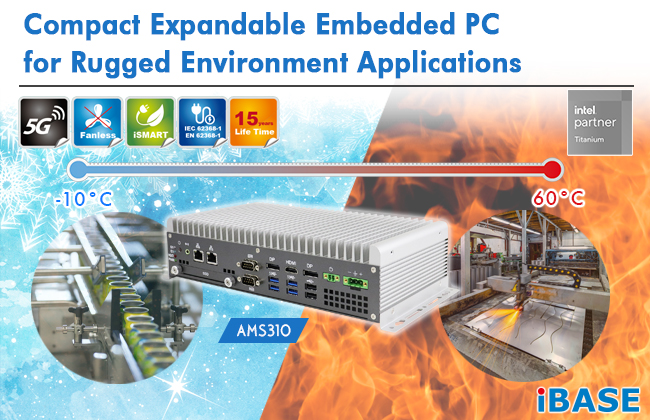

Compact Expandable Embedded PC for Rugged Environment Applications

Built with a reliable passive finned heat sink that provides an efficient and effective transfer of heat away from components, the AMS310 box PC houses the IBASE MB310 customized board with Intel Q470E PCH to support 10th Gen Intel® Core™ i7/i5/i3 desktop processors (35W TDP). It allows connection of up to six antennas, offering industrial-grade connectivity using M.2 2030 E-Key and 3052 B-Key for WLAN/4G/5G connections.

The AMS310 compact platform measures 275x150x70mm and accommodates up to 64GB DDR4 system memory. The rear panel provides connectors for HDMI, DP, line-out, 6x USB, 2x COM, 2x RJ45 for 2.5G LAN, and 24V DC-in power. System storage is supported by an externally accessible 2.5” drive bay and an M.2 M-keyed socket for fast NVMe SSDs. Other features include TPM 2.0 security, over/under/reverse voltage protection and multiple OS support.

The expanded model AMS312 shares the same footprint with a height of 117mm and comes with additional expansion for PCI-E(x8) and PCI-E(x4) slots. For more information, please visit www.ibase.com.tw.
